Onset and recovery of ultrasound guided out-of-plane versus in-plane interscalene block in arthroscopic shoulder surgery
Ain-Shams Journal of Anesthesiology volume 12, Article number: 16 (2020)
The aim of this study was to assess the out-of-plane versus the in-plane approaches for the interscalene brachial plexus block, as regards the performance time, the onset, the progression and the recovery of sensory block, the onset and progression of the motor block as well as, the postoperative pain score, and the duration of analgesia for arthroscopic shoulder surgery. A total of 60 patients of American Society of Anesthesiologists (ASA) physical status I-II were randomly divided to receive either the in-plane approach (group I), or the out-of-plane approach (group O).
The block performance time was statistically significant shorter in group O. The onset of sensory block was statistically significant faster in group O. The progression of sensory block over the first 20 min was statistically significant fast for C5 and C6 nerve roots in group O. The motor block showed statistically and clinically significant rapid onset and progression in group O. All patients in group O and group I felt no pain in the post-anesthesia care unit (PACU), and the first call for analgesia was at 24 h in both groups.
The out-of-plane approach offers short performance time, rapid onset and progression of sensory and motor blocks, as well as postoperative analgesic effect lasting for 24 h in arthroscopic shoulder surgery.
Interscalene brachial plexus block is the commonly used block for anesthesia and postoperative analgesia for shoulder surgeries (Mariano et al., 2009a). It blocks the nerve roots/trunks of the brachial plexus (Madison et al., 2013; Sarah et al., 2013); the local anesthetic (LA) is directed towards C5-C6 nerve roots. C7 and even C8 nerve roots may be blocked depending on the volume of the LA used. Ulnar sparing (C8 and T1 nerve roots) often occurs with the block (Mariano et al., 2009a).
Ultrasound guided interscalene block decreases the number of needle passes, offers rapid onset, and improves the LA distribution, thus the sensory block, with decreased risk of major vessels and nerve injury (Liu et al., 2009). It could be performed as a single LA injection or by a catheter insertion technique (Joseph & Ajit, 2011). Also, it could be performed with an in-plane or an out-of-plane needle approaches. The in-plane approach is commonly used for single injection blocks, whereas the out-of-plane approach is commonly used for block with catheter insertion (Antonakakis et al., 2009; Ushma & Herman, 2015).
Patients and methods
After obtaining the approval of Ain-Shams University Hospitals’ ethical committee (FMASU R59/2018), informed consent was taken from 60 patients of ASA physical status I-II, greater than or equal to 30 years old and smaller than or equal to 60 years old, scheduled to undergo arthroscopic shoulder surgery in the lateral position, under ultrasound-guided interscalene brachial plexus block (ISPB) in this randomized study at Ain-Shams University Hospitals, from December 2018 until June 2019. Randomization was done using computer-generated random number tables with sealed opaque envelopes.
Preoperative evaluation included a detailed history, physical examination along with neurological assessment and investigations, which included the following: complete blood count, the coagulation profile, liver and kidney function tests, and electrocardiography (ECG). During the pre-anesthetic visit, the procedure was explained to the patients to allay anxiety and the visual analogue scale (VAS) to assess the postoperative pain was also explained to the patients.
The exclusion criteria are obesity classes II and III (body mass index ≥ 35 kg/m2 body surface area) (Stephani, 2018), anticipated difficult airway, infection at the injection site, known LA allergy, contralateral phrenic nerve dysfunction, history of cardiac, hepatic, renal disease, coagulopathy, chronic obstructive pulmonary disease, or neuropathy involving the brachial plexus.
Preparation of the study drugs
Twenty milliliter of 0.5% bupivacaine (Sunny Pharmaceutical (Egypt) under license of Hamelin Pharmaceuticals (Germany) added to them 50 μg adrenaline in a concentration of 1:400,000, were prepared by an assistant immediately before administration (Andrew & Lisa, 2012).
The anesthetic technique
On arriving to the operating theater, patients had an 18G intravenous cannula inserted in the non-operative upper limb side. All patients received 0.05 mg/kg IV midazolam hydrochloride (Dormicum, 5 mg/ml; Roche, Basel, Switzerland) and 30 mg pethidine (pethidine hydrochloride, 50 mg/ml; Misr Co., for Pharmaceuticals, Alexandria, Egypt).
Intraoperative basic monitors were applied using 5-leads ECG, pulse oximetry, non-invasive blood pressure (NIBP), and capnography (sample tube inserted under the O2 mask). The monitor used was Dash 5000; General Electric, Medical Systems Information Technologies, Inc. Tower Ave., Milwaukee, WI, USA, and the anesthetic machine used was Datex-Ohmeda, Inc. 3030 Ohmeda Drive, Madison, WI 53707-7550, USA. A simple O2 mask at a flow of 6 L/min was applied. Infusion of Ringer’s solution was then started at a rate of 5 ml/kg/h throughout the surgery. Back up general anesthesia with all airway equipment are as follows: oropharyngeal airways, laryngeal mask airway, endotracheal tubes, and a laryngoscope were prepared.
Patients were placed in the supine position with their heads rotated towards the non-operative side. Iodine solution was used as an antiseptic on the operative neck side and then the patient head, neck, and chest were draped. Local infiltration of the skin at the point of needle insertion was carried out with 2 ml lidocaine hydrochloride 1% (Sigma Tec Industries Co packed by Al-Debeiky pharmaceutical Industries, A.R.E., Obour City Ind. Zone), then a sterile 50-mm 22-G insulated needle (Stimuplex; B. Braun, Melsungen, Germany) was used for performance of the block.
The ultrasound (M-Turbo; SonoSite, Washington, DC, USA) with a high frequency linear transducer (frequency 10–15 MHz) was used, with the depth setting of 2–4 cm. Distal to proximal (trace back) approach was used; the supraclavicular fossa was scanned first to identify the subclavian artery as it passes over the first rib, by placing the probe against the clavicle and scanning in a caudate direction. The brachial plexus was easily identified as bunch of grapes superolateral to the artery. The plexus was followed medially and cephalad along its course by keeping the nerves in the center of the screen, to identify the brachial plexus roots between the anterior and the middle scalene muscles at the level of the sixth cervical vertebra deep to the sternocleidomastoid muscle.
Patients were then divided into 2 equal groups of 30 patients each
An in-plane approach was used for the interscalene block. The needle was brought in the same plane as the probe at a shallow angle to the skin, some distance away from the edge of the probe in a lateral to medial direction so that the whole length of the needle can be visualized. After negative aspiration and assurance that high resistance to injection was absent, the LA was injected in a 5-ml increment below the lower root, between the 3 roots, and above the upper root.
An out-of-plane approach was used for the interscalene block. The needle was inserted cranial to the probe and after negative aspiration and assurance that high resistance to injection was absent, the LA was injected in a 10-ml increment, lateral and medial to the nerve roots. The needle appeared as a bright dot on the screen and by tilting the probe, the tip was identified as the point where further tilting leads to no longer visualization of the bright dot on the screen.
After completion of the LA administration, the time was recorded as a baseline for the time interval. The assistant who recorded the data was blind to the patient groups.
The sensory block was assessed by a pin-prick test using a 3-point scale (Calderon et al., 2015):
0 = normal sensation
1 = loss of sensation of pin prick (analgesia)
2 = loss of sensation to touch (anesthesia)
The motor block was assessed according to the shoulder, arm, and fingers’ movement using a 3-point scale (Santvana et al., 2013):
0 = normal movement
1 = diminished but not totally absent motor strength (paresis)
2 = unable to elevate the shoulder, flex the arm, or move the fingers (lack of movement)
Postoperative pain was measured at rest using the VAS score (Santvana et al., 2013); patients were asked to make a mark on a 10-cm line corresponding to their pain level, with 0 = no pain at all and 10 = the worst pain possible.
The onset of sensory block (time to C5 block): defined as the period between the completion of the LA administration and the loss of sensation to pin prick (sensory score = 1) in C5 dermatome performed every 1 min
The procedure time: time from the skin infiltration by the lidocaine until removal of the stimulating needle from the skin
Progression of sensory block over the first 20 min of LA injection performed by pin prick every 5 min in C6, C7, C8, and T1 dermatomes
The onset of motor block: defined as the period between the completion of LA administration until lack of movement (motor score = 2) of the shoulder, arm, and fingers’ muscles assessed every 1 min
The progression of motor block over the first 20 min of LA injection in the shoulder, arm, and fingers’ muscles assessed every 5 min
The duration of motor block: defined as the period between the onset of motor block until complete recovery of motor function (motor score = 0). It was assessed in the PACU and at 4, 8, and 12 postoperative hours, then every hour until 24 postoperative hours.
Postoperative pain score: intensity of pain was monitored at rest in the PACU and at 4, 8, 12, and 24 h after the end of surgery using the VAS score.
The duration of analgesia: defined as the time interval between the onset of sensory block until the first call for analgesia. Postoperative analgesia was standardized; a patient with a VAS score of more than 4 was treated with 1 g paracetamol (Perfalgan vial, 100 ml of 10 mg/ml; Bristol-Myers Squibb Australia Pty Ltd). If the patient’s VAS remained greater than 4 after 1 h, intravenous boluses of 25 mg of pethidine were given and the total dose of pethidine given was recorded.
Statistical analysis was done using PASS program, setting alpha error at 5% and power at 80%. Results from pilot study showed that the mean time to loss of sensation at C5 dermatome among patients in the out-of-plane group was 4.5 min, while for patients in the in-plane group was 6.5 min with 2.5 min standard deviation within each group. Based on this, with taking in consideration 10% drop out rate, the needed sample was 30 cases per group.
Data were analyzed using Statistical Package for Social Science (SPSS) version 21.0. Chicago, Illinois, USA. Quantitative data were expressed as mean ± standard deviation. Qualitative data were expressed as count (and percent). The independent samples t test was used to compare between means in the two groups for quantitative parametric data. Mann-Whitney U test was used for skewed data. Chi square test or Fisher’s exact test was used as appropriate to compare proportions between two qualitative parameters. P value < 0.05 was considered significant and P value < 0.01 was considered highly significant.
Sixty patients were enrolled in the study and were divided into 2 groups of 30 patients each. The 2 groups were comparable according to the demographic data (age, sex, weight, and ASA physical status) with P values of 0.469, 0.787, 0.063, and 0.795 respectively (Table 1).
According to the block performance time, it was statistically significant shorter in the out-of-plane approach than in the in-plane approach (6.3 ± 0.36 versus 7.85 ± 0.47 min respectively with P value < 0.001). There was no statistically significant difference between the 2 groups regarding the duration of surgery with P value of 0.075 (Table 2).

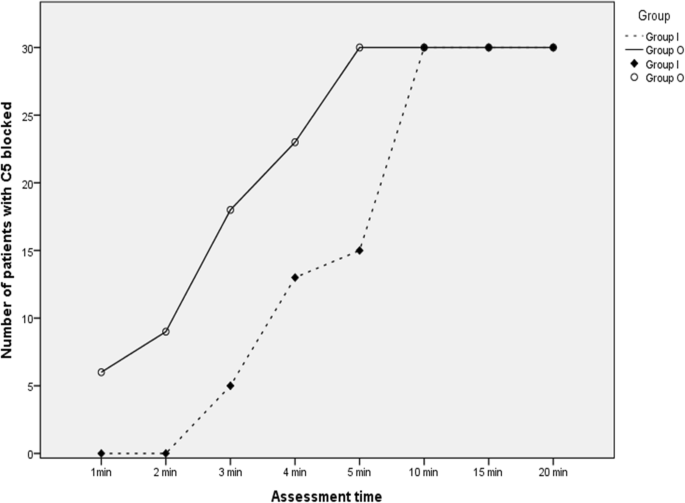

The onset of sensory block was statistically significant faster in the out-of-plane approach than in the in-plane approach (4.78 ± 0.28 versus 6.42 ± 0.26 min respectively with P value < 0.001). The progression of C5 block was statistically significant faster in the out-of-plane approach than in the in-plane approach (P value = 0.01, 0.001, 0.001, 0.008, and < 0.001 at 1, 2, 3, 4, and 5 min respectively). The 30 patients were blocked by 5 min versus 10 min in the in-plane approach and the out-of-plane approaches respectively (Table 3 and Fig. 1).
The progression of sensory block over the first 20 min was statistically significant fast for C6 nerve root in the out-of-plane approach as the 30 patients (100%) showed C6 block in the first 5 min, whereas it took 10 min in the in-plane approach (P value < 0.006). Regarding the progression time to C7 block, there was no statistically significant difference between both groups as 83.3% of patients were blocked by 15 min in the out-of-plane approach compared to 76.7% of patients in the in-plane approach (P value = 0.519), and by 20 min, the 30 patients (100%) of both groups were blocked. Regarding the progression time to C8 block, it was not completely blocked in both groups, by 20 min, 96.7% of patients were blocked in the out-of-plane approach compared to 90% of patients in the in-plane approach (P value = 0.301). Regarding the progression time to T1 block, 50% of patients in the out-of-plane approach were blocked by 15 min and increased to 93.3% of patients by 20 min compared to 33.3% and 83.3% of patients at 15 and 20 min respectively in the in-plane approach (P values = 0.190 and 0.228 respectively) (Table 4).
Regarding the motor block, it showed statistically and clinically significant rapid onset and progression in the out-of-plane approach than in the in-plane approach; as by 3 min, 50% of patients were unable to elevate their shoulders and 33.3% of patients showed only diminished shoulder movement in the out-of-plane approach compared to 50% of patients with diminished shoulder movement and 50% of patients with normal movement in the in-plane approach (P value < 0.001). By 4 min, 50% of patients were unable to flex the arm in the out-of-plane approach compared to 53.3% of patients with normal range of motion in the in-plane approach (P value < 0.001). By 10 min, 100% of patients in the out-of-plane approach were unable to elevate their shoulders, 93.3% of patients were unable to flex their arms, and 50% of patients were unable to move their fingers in the out-of-plane approach compared to 83.3%, 66.7%, and 0% of patients respectively in the in-plane approach (P value 0.02, 0.031 and < 0.001 respectively). By 15 min, 100% of patients were unable to flex their arms in the out-of-plane approach compared to 93.3% of patients in the in-plane approach. By 20 min, 100% of patients of both groups were unable to elevate their shoulders and flex their arms, with 93.3% of patients in the out-of-plane approach and 83.3% of patients in the in-plane approach unable to move their fingers (Table 5).
Regarding the duration of motor block, there was no statistical significance between the 2 groups (P value 0.474) (Table 6).
Postoperative pain score
Regarding postoperative pain assessed in the PACU and at 4, 8, and 12 postoperative hours, all patients felt no pain (VAS = 0).
The duration of analgesia

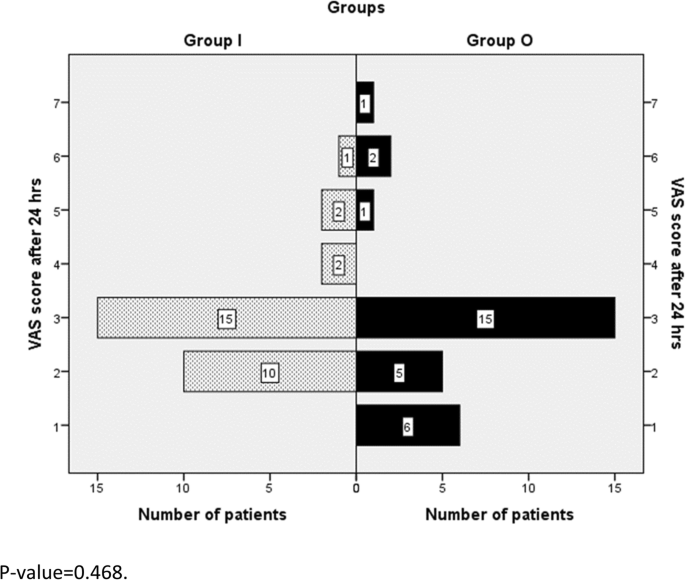

The first call for analgesia was at 24 h in both groups. At 24 h, there was no statistical or clinical significance between the 2 groups as 50% of patients of both groups showed VAS = 3 with only one patient in the out-of-plane approach with VAS = 7 (Fig. 2), and the pain for patients of both groups with VAS more than 4 was relieved with 1 gm Perfalgan and did not require pethidine.
In our study, the block performance time was statistically significant shorter in the out-of-plane approach than in the in-plane approach. This could be attributed to the simplicity of the 2 points injection on both sides of the plexus in the out-of-plane approach rather than the 4 points injection in the in-plane approach. Our results go with those found by Tomassetti and his colleagues in 2008; where the time of performance was 220±80 sec for the in-plane approach and 120±30 sec in the out-of-plane approach with P-value < 0.01. However, Schwenk and his colleagues in 2015 found no difference in the mean procedure time for the out-of-plane and the in-plane catheter technique groups (257.8 sec, 95% CI, [238.1 - 277.4] versus 296.1 sec; 95% CI, [255.2 - 336.9] respectively with P-value=0.093. The difference between our results and those by Schwenk and his colleagues in 2015, may be attributed to the time consumed for the catheter insertion in their study.
Ultrasound guided out-of-plane approach is done by needle insertion and LA deposition on either side of the brachial plexus (Mariano et al., 2009). It provides a shorter path to the plexus but, with more risk of complications compared to the in-plane approach; especially to the recurrent laryngeal nerve on the right side where it lies close to the plexus, and the phrenic nerve in case of proximal site for needle insertion (Borgeat and Ekatodramis, 2002; Bowens et al., 2011; Capdevila et al., 2008). Thus, choosing a distal point for needle insertion may be a safer route where the phrenic nerve is away from C5 root (Ushma and Herman, 2015). Ultrasound guided in-plane approach is used for single injection blocks and is considered to be safer as the entire length of the needle is seen. For more complex procedures; continuous catheter techniques allow prolonged analgesia; thus earlier mobilization with improved rehabilitation (Fredrickson et al., 2008). But, catheter threading through the middle scalene muscle, could be painful and could also be difficult in morbidly obese patients (Ilfeld et al., 2010).
In the current study, the onset of C5 block was statistically significant faster in the out-of-plane than the in the in-plane approach. In the study done by Tomassetti et al. (Tomassetti et al., 2008), they also found rapid onset for the out-of-plane approach than the in-plane approach (450 ± 150 versus 510 ± 180 s respectively).
In the present study, the progression of sensory block over the first 20 min showed statistically significant rapid onset for C6 block in the out-of-plane than in the in-plane approach, and clinically significant rapid onset and progression for C7 block in the out-of-plane than in the in-plane approach with C8 and T1 sparing in both groups. In the study done by Schwenk et al. (2008), there were no differences in the percentage of patients in both groups with sensory block at any time, but the block progression was slower than in our study. As regards C6 block, at 10 min, 90 and 84.2% of patients in the out-of-plane and in the in-plane approaches respectively were blocked. Regarding C7 block, 55.5% of patients were blocked in the out-of-plane approach at10 min compared to 76.3% in the in-plane approach. Regarding C8 block, it was not completely blocked until patients were transferred to the PACU where 75.6 and 73.7% of patients were blocked in the out-of-plane and the in-plane approaches respectively.
Regarding the motor block, it showed statistically and clinically significant rapid onset and progression in the out-of-plane block than in the in-plane block in the first 20 min. In the study done by Schwenk et al. (2008), there were no differences in the proportion of patients in each group with motor block at any time. However, it showed rapid similar results to our study. This difference could be attributed to the rapid onset of C5 and C6 blocks in our study. As our injection was in a cephalad to caudate direction, Schwenk and his colleagues used a caudate to cephalad direction.
In the current study, the differences in the onset and progression of the sensory and the motor blocks in the 2 groups could be attributed to the 2 points’ injection of 10 ml of the bupivacaine on either sides of the plexus, with greater volume encircling C5 and C6 roots than dividing the 20 ml of bupivacaine into 5 ml increments, distributed above, between, and below the plexus; thus, lesser volume encircling the C5 and C6 roots. In shoulder surgery, C5 and C6 dermatomes have the main concern to be blocked than C7, C8, and T1.
Patients undergoing arthroscopic shoulder surgery suffer severe postoperative pain which is exacerbated during rehabilitation by movement (Trompeter et al., 2010). Regarding postoperative analgesia, it was assessed in the PACU, at 4, 8, and 12 postoperative hours, where all patients felt no pain (VAS = 0). At 24 h, there was no statistical or clinical significance between the 2 groups and the patient in the out-of-plane approach with VAS = 7, pain was relieved by intravenous infusion of 1 gm paracetamol. Our results are similar to those in the study done by Schwenk et al. (2008), as there were no differences in the median VAS pain rating recorded in the PACU between the out-of-plane and the in-plane approaches (1.0; IQR, [0–3.5] vs. 0.25; IQR, [0–2.5]; P = 0.08) and at 24 h between the 2 groups respectively (1.50; IQR, [0–4.38] vs. 1.25; IQR, [0–3.75]; P = 0.57). In contrast to the results in 2010 by Fredrickson et al. (Fredrickson et al., 2010), who found that patients in the out-of-plane group were more frequently pain free in the PACU and required less tramadol in the first 24 postoperative hours.
In conclusion, single injection out-of- plane approach to the interscalene brachial plexus block provides similar analgesia to the in-plane approach for 24 h, with less performance time, rapid onset, and progression of sensory and motor blocks. So, it is an appropriate alternative to the in-plane approach.
Availability of data and materials
American Society of Anesthesiologists
Non-invasive blood pressure
Post-anesthesia care unit
Statistical Package for Social Science
Visual analogue scale
Andrew G, Lisa W (2012) Ultrasound-guided interscalene blocks. J Ultrasound Med 31(7):979–983
Antonakakis JG, Sites BD, Shiffrin J (2009) Ultrasound-guided posterior approach for the placement of a continuous interscalene catheter. Reg Anesth Pain Med 34(1):64–68
Borgeat A, Ekatodramis G (2002) Anaesthesia for shoulder surgery. Best Practice Res 16(2):211–225
Bowens CJ, Briggs ER, Malchow RJ (2011) Brachial plexus entrapment of interscalene nerve catheter after uncomplicated ultrasound-guided placement. Pain Med 12(7):1117–1120
Calderon AL, Zetlaoui P, Benatir F et al (2015) Ultrasound-guided intermediate cervical plexus block for carotid endarterectomy using a new anterior approach: a two-centre prospective observational study. Anaesthesia 70(4):445–451
Capdevila X, Jaber S, Pesonen P et al (2008) Acute neck cellulitis and mediastinitis complicating a continuous interscalene block. Anesth Analg 107(4):1419–1421
Fredrickson MJ, Ball CM, Dalgleish AJ (2008) Successful continuous interscalene analgesia for ambulatory shoulder surgery in a private practice setting. Reg Anesth Pain Med 33:122–128
Fredrickson MJ, Ball CM, Dalgleish AJ (2010) Analgesic effectiveness of a continuous versus single-injection interscalene block for minor arthroscopic shoulder surgery. Reg Anesth Pain Med 35(1):28–33
Ilfeld BM, Fredrickson MJ, Mariano ER (2010) Ultrasound-guided perineural catheter insertion: three approaches but few illuminating data. Reg Anesth Pain Med 35(2):123–126
Joseph C, Ajit B. Ultrasound guided interscalene brachial plexus block. Anaesthesia tutorial of the week 233. 25th July 2011. Department of Anaesthesia Queen Elizabeth Hospital, King’s Lynn.
Liu SS, Zayas VM, Gordon MA et al (2009) A prospective, randomized, controlled trial comparing ultrasound versus nerve stimulator guidance for interscalene block for ambulatory shoulder surgery for postoperative neurological symptoms. Anesth Analg 109(1):265–271
Madison SJ, Humsi J, Loland VJ et al (2013) Ultrasound-guided root/trunk (interscalene) block for hand and forearm Anesthesia. Reg Anesth pain Med 38(3):226–232
Mariano ER, Afra R, Loland VJ et al (2009b) Continuous interscalene brachial plexus block via an ultrasound-guided posterior approach: a randomized, triple-masked, placebo-controlled study. Anesth Analg 108(5):1688–1694
Mariano ER, Loland VJ, Ilfeld BM (2009a) Interscalene perineural catheter placement using an ultrasound-guided posterior approach. Reg Anesth Pain Med 34:60–63
Santvana K, Manpreet K, Sangeeta S et al (2013) Brachial plexus block: comparison of two different doses of clonidine added to bupivacaine. J Anaesthesiol Clin Pharmacol 29(4):491–495
Schwenk ES, Kishor G, Jaime LB et al (2015) Ultrasound-guided out-of-plane vs. in-plane interscalene catheters: a randomized, prospective study. Anesth Pain Med 5(6):e31111. https://doi.org/10.5812/aapm.31111
Stephanie BJ (2018) Obesity in the operating room: how big a problem? Anesthesiology 311
Tomassetti M, Mangia G, Bosco M (2008) Ultrasound-guided interscalene block: out-of-plane versus in-plane needle approach. Reg Anesth Pain Med 33(5):64
Trompeter A, Camilleri G, Narang K et al (2010) Analgesia requirements after interscalene block for shoulder arthroscopy: the 5 days following surgery. Arch Orthop Trauma Surgery 130(3):417–421
Ushma JS, Herman S (2015) In-plane interscalene block: a word of caution. J Anaesthesiol Clin Pharmacol 31(1):129–130. https://doi.org/10.4103/0970-9185.150574
